What is Concentrating Solar Power?
Concentrating solar power plants produce electric power by converting the sun's energy into high-temperature heat using various mirror configurations. The heat is then channeled through a conventional generator. The plants consist of two parts: one that collects solar energy and converts it to heat, and another that converts heat energy to electricity.
Concentrating solar power systems can be sized for village power (10 kilowatts) or grid-connected applications (up to 100 megawatts). Some systems use thermal storage during cloudy periods or at night. Others can be combined with natural gas and the resulting hybrid power plants provide high-value, dispatchable power. These attributes, along with world record solar-to-electric conversion efficiencies, make concentrating solar power an attractive renewable energy option in the Southwest and other sunbelt regions worldwide.
Why
Concentrating Solar Power is one of the Few "Superior"
Renewable Energy Technologies
Concentrating solar power plants use the high annual solar irradiance of the geographic location to generate "carbon free energy" and "pollution free power."
For generating power after the sun sets, many owners/developer of concentrating solar power plants are now installing "Molten Salt Storage" systems that reserves enough energy to allow for electricity generation throughout the nighttime period.
Steam turbines and
gas turbines powered by coal, uranium,
oil and natural gas are the fuels used today for generating power and electric grid
stability. These fuels provide both base-load and peak power. However,
these same steam turbines can also be powered by the high temperature
heat from concentrating
solar power
plants.

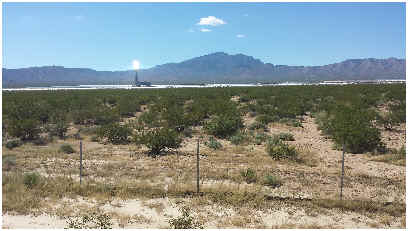

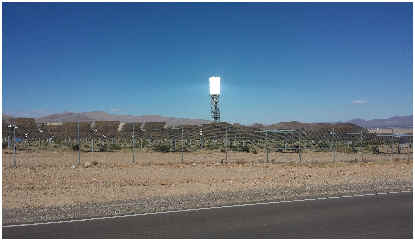

Concentrating solar power plants in the 30 MW - 200 MW range are now operating successfully in locations from California to Europe. Nearly every day now, new concentrating solar power plants are being planned for construction. The concentrating solar collectors are very efficient and they also completely replace the fossil fuels that were used in traditional power plants. Today's concentrating solar power plants generate the heat needed to generate electricity at a cost equivalent to $50 - $60 per barrel of oil (equivalent). This cost is expected be slashed by 50% to below $25 - $30 per barrel in the next 10 years.
Just like conventional fossil-fueled power plants, concentrating solar power plants generate base-load and peaking power electricity.
Just like fossil fuel fired conventional power plants, concentrating solar power plants have an availability that is close to 100 %, but without the carbon emissions, carbon dioxide emissions, hazardous air pollutants, nitrogen oxides, volatile organic compounds and greenhouse gas emissions that fossil fuel power plants emit.
A
concentrating
solar power plant with a
molten salt storage facility for
full load operation during the nighttime period is currently being built in the Spanish Sierra Nevada near Guadix.
This concentrating
solar power
plant will generate 50 MW of
power.
Another feature that distinguishes concentrating
solar power plants
is the opportunity for combined generation of heat and power - a technology that
is called "Integrated
Solar Combined Cycle" which achieves the highest possible efficiencies for energy conversion. In addition
to power generation, such plants can provide steam for absorption
chillers and/or adsorption
chillers, industrial process heat or thermal ocean water desalination. A design study for such a plant was
completed in 2006. This plant is scheduled to be commissioned in early 2009.
This Integrated Solar
Combined Cycle will provide 10 MW of power, 40 MW of district cooling and 10,000 cubic
meters per day of desalted water for a large hotel in Jordan.
What is "Net Zero Energy?"
Net Zero
Energy - when applied to a home or commercial building, simply means that
they generate as much power and energy as they consume, when measured on a
monthly or annual basis.
What
is "Copper Indium Gallium Diselenide?"
Copper Indium Gallium diSelenide (CuInSe2) is a material that provides an extremely high absorption of light ( 99%) to be absorbed in the first micron of the material. Copper Indium Gallium diSelenide is projected to be the revolutionary material that some are saying, could put typical "central" power plants and some electric utilities, out of business, as it will be much cheaper for customers to generate their own onsite power with Thin Film Photovoltaics made from these materials.
When additional small amounts of Gallium is added to Copper Indium diSelenide, this increases its' light-absorbing band gap, thereby making the solar panel more closely match the solar spectrum of the sun. This, in turn, increases the voltage and the efficiency of the Thin Film Photovoltaics solar panel.
Solar panels produced with Copper Indium Gallium diSelenide cells have reached efficiencies of more than 20% - which is much higher than the other Thin Film Photovoltaics.
Copper Indium Gallium diSelenide solar panels create more electricity from the same amount of sunlight than other Thin Film Photovoltaics panels. This translates into a higher conversion efficiency.
The conversion efficiency of Copper Indium Gallium diSelenide PV technologies is very stable over time, meaning its power output remains stable over many years, while the power output of many other PV materials can rapidly decline with time.
What are "Building Integrated Photovoltaics?"
Building Integrated Photovoltaics (BIPV) are solar energy systems that are integrated into a part of the building, that serve as the building's exterior or the building's skin.
Commercial buildings and facilities (including houses) that integrate their own solar power systems into the building's exteriors, are referred to as "power buildings."
The technology that makes this possible is "Thin Film Photovoltaics."
What are Thin Film Photovoltaics?
Without a doubt, the most exciting technology in the solar power industry is "Thin Film Photovoltaics." Thin Film Photovoltaics technology represents the next big thing in renewable energy and solar power as it integrates nanotechnologies into the production of solar photovoltaics.
According to the Department of Energy, the recent technological advances in thin film photovoltaics make this a very exciting time to be in the solar energy industry. These advances have led to many new developments in the components and manufacturing of thin film photovoltaics. This has made thin film photovoltaics cheaper to manufacture as they are also now easier to install since they are extremely versatile, flexible, bendable, and much lighter.
Thin film photovoltaics have led many to believe that as much as 50% of our nation's future power will be generated by "power buildings" that integrate "building integrated photovoltaics" or "BIPV" into the building's skin or exterior surfaces, that convert sunlight into "pollution free power" for use in the building. This also designates these buildings (and homes) as "Net Zero Energy Buildings" and make the option for going grid-free, or not connecting to the grid, a real possibility.
According to the Department of Energy, the market potential for printed electronics will grow into a $47 billion market by 2018. Thin film photovoltaics represents a significant portion of this market - and based on this heavily researched solar technology, thin film photovoltaics now represents a $20 billion/year industry in the U.S.
The solar PV panels produced under the thin film photovoltaics umbrella have the potential to produce power significantly cheaper power than today’s typical silicon-based PV panels. The panels are usually made in the form of a monolithic piece of glass, upon which various thin films are deposited, although a number of firms are working on depositing the materials on a substrate, such as stainless steel or plastic.
Types of Thin Film Photovoltaics – there are primarily three types of thin film photovoltaics and include:
Amorphous Silicon
Cadmium Telluride
Amorphous Silicon had the largest share of the thin film photovoltaics market through 2006. It has been researched for the longest period of time, may be the best understood material of the three and has been commercial for the longest. Cadmium Telluride has the remaining share and is growing.
Thin Film Photovoltaics Advantages over Crystalline Silicon Photovoltaics
Lower cost of production of the
Lower production facility cost per watt - CapEx
Uses as little as 1/500 of the amount used in standard silicon cells
Lower energy payback – amount of time until the product produces more energy than was utilized in its manufacture.
Produces more power/watt
Superior performance in hot and cloudy climates
Integrates seemlessly in homes and buildings – see Building Integrated Photovoltaics
Produces the lowest cost power
What is a Net Zero Energy Building?
A Net Zero Energy Building produces as much energy as it uses over the course of a year. Net Zero Energy Buildings are very energy efficient. The remaining low energy needs are typically met with on-site renewable energy.
There is no such thing as a "zero energy building."
EVERY building uses energy.
The important considerations are,
1. How efficient is the building?
2. How much energy does the building use?
3. How much "carbon free energy" or "pollution free power" is generated by the buildings' own onsite renewable energy system?
4. What are the
utility company's prices for the excess power generated and sent to the
grid?
(see: Net Energy Metering)
5. How difficult is it to interconnect the renewable energy system of the building with the utility company's powerlines/electric grid?
At the heart of Net Zero Energy Buildings is the idea that buildings can meet energy requirements from low-cost, locally available, nonpolluting, renewable sources.
What is Net Energy Metering?
Net energy metering is used to measure a customer's total electric
consumption against that customer's total on-site electric generation. When
a customer's onsite generation of power exceeds the amount that they use, the customer's
solar energy system (or other renewable energy system) exports the extra electricity to the
grid. When the power requirements of the customer exceeds their onsite
generation of power, the customer imports the electricity they need from
electric grid. The customer pays the electric company for any extra power they
use over the amount they generate - OR - the customer receives a credit or
refund from the electric company if they exported more power to the grid, than
what they consumed.
Much focus is placed on energy efficiency as the most cost-effective way to reduce energy use in commercial buildings. However, consumption can be reduced only so much. There is a point at which the cost of adding efficiency measures is higher than that of using renewable energy such as thin film photovoltaics and other solar energy systems.
Aggressive energy efficiency strategies can reduce a building's energy consumption by 50% to 70%. Renewable energy technologies must be used to reach the goal of a net-zero energy building (NZEB).
Various supply-side renewable energy technologies are available for Net Zero Energy Buildings. Supply-side technologies, often called energy producers, collect natural energy and transform it into a useful form. Examples of these technologies include PV, solar hot water, wind, hydroelectric, and biofuels.
All renewable sources are favorable over conventional energy sources such as coal and natural gas; however, the U.S. Department of Energy recommends the following ranking for these options (the lower numbers are preferable):
|
Option Number |
NZEB Supply-Side Options |
Examples |
|---|---|---|
|
0 |
Reduce site energy use through low-energy building technologies |
Daylighting, high-efficiency heating, ventilation, and air-conditioning equipment (HVAC), natural ventilation, evaporative cooling |
|
On-Site Supply Options |
||
|
1 |
Use renewable energy sources available within the building's footprint |
PV, solar hot water, and wind located on the building |
|
2 |
Use renewable energy sources available at the site |
PV, solar hot water, low-impact hydroelectric, and wind located on-site, but not on the building |
|
Off-Site Supply Options |
||
|
3 |
Use renewable energy sources available off site to generate energy on site |
Biomass, wood pellets, ethanol, or biodiesel that can be imported from off site; waste streams from on-site processes that can be used on-site to generate electricity and heat |
|
4 |
Purchase off-site renewable energy sources |
Utility-based wind, PV, emissions credits, or other "green" purchasing options; hydroelectric is sometimes considered |
This hierarchy is weighted toward renewable technologies within the building footprint and site. Rooftop PV and solar water heating are the most applicable supply-side technologies for Net Zero Energy Buildings. Other supply-side technologies such as parking lot-based wind or solar energy systems may be available.
The goal in developing the ranking was to encourage technologies that:
Minimize overall environmental impact by encouraging energy-efficient building designs and reducing transportation and conversion losses
Will be available over the lifetime of the building
Are widely available and have high replication potential for future Net Zero Energy Buildings.
